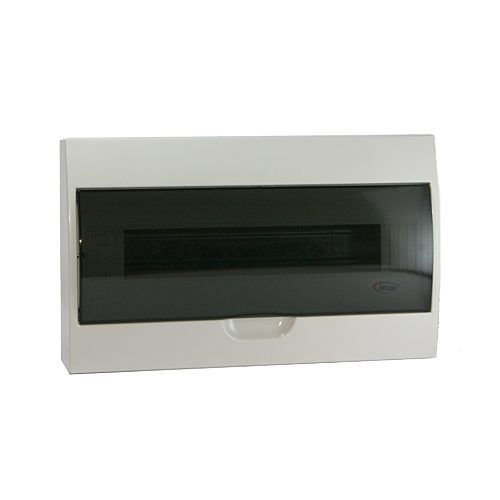

Deltool AC Connection Kit
The Deltool AC Connection Kit is a complete, installer-ready solution designed for safe and compliant AC integration of solar inverters into residential and light commercial electrical systems. The kit is pre-specified to support common inverter sizes and simplifies on-site installation by including all essential AC-side components and consumables.
Available Kit Sizes
3.6 kW – Single Phase
5 kW – Single Phase
8 kW – Single Phase
10 kW – Single Phase
12 kW – Three Phase
What’s Included
Each AC Connection Kit includes:
Up to 50 m AC cable per phase (phase and neutral, as applicable)
25 m earth cable
Two electrical enclosures (supply and load side)
Supply and load MCBs correctly rated for the system
Change-over switch for grid/inverter isolation
Earth–Neutral bonding relay
Surge arrestor with earth pins
Trunking, spray, fixings, and all standard installation consumables
Application
The kit is intended for use between the inverter and the main distribution board and supports both backup and grid-connected configurations. It is suitable for installations where neat cable management, correct protection, and regulatory compliance are required.
Important Notes
Installation must be completed by a qualified installer.
Final cable routing, protection sizing, and compliance sign-off remain the responsibility of the installer issuing the Certificate of Compliance (CoC).
Components may vary slightly depending on inverter model and site requirements, while maintaining the same functional specification.
